Argyre

TVC controlled model rocket

0

TOTAL FLIGHTS

2

STATIC TESTS

2

TOTAL MODELS

.

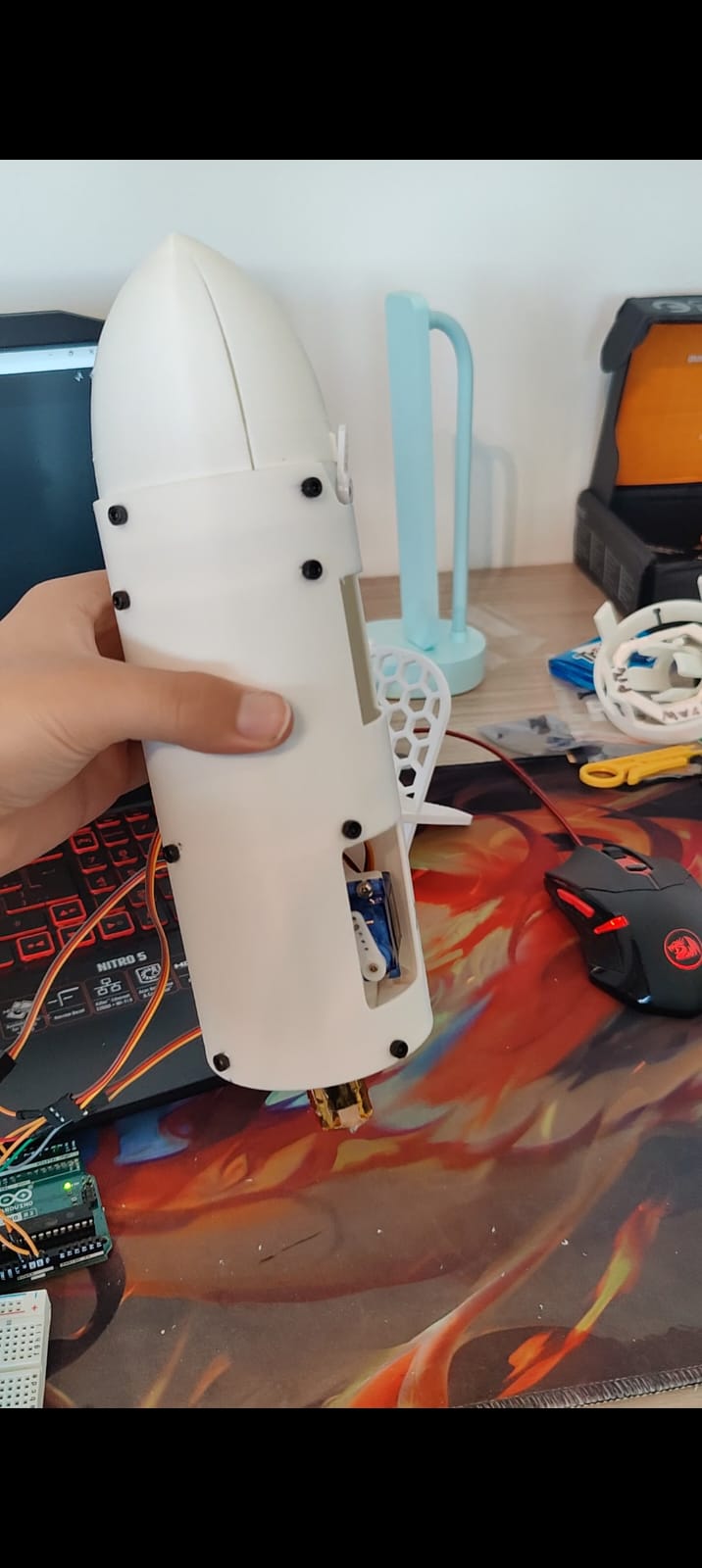

Im currently making a TVC Controlled model Rocket that uses a PID controller to stabilize the rocket, this Rocket uses a C6-7 Estes engine giving it 5 seconds to TVC stabilize itself. For more information about this rocket please visit my youtube channel.

The first static fire test showed a clear misalignment in the vertical CG of the rocket, the second had improved PID gains but was almost the same as the last test then I purchased a simulink PID tuning model that helped me get real PID tuned gains to succesfully controll my rocket in the next static fire test.

Components

Helios | TVC Gimbal | Recovery System

Helios

Model Rocket Flight Computer

TVC Gimbal

TVC Gimbal powered by two servo motors

Power Source

Nozzle and spring rocovery system

Argyre

TVC controlled Model Rocket
